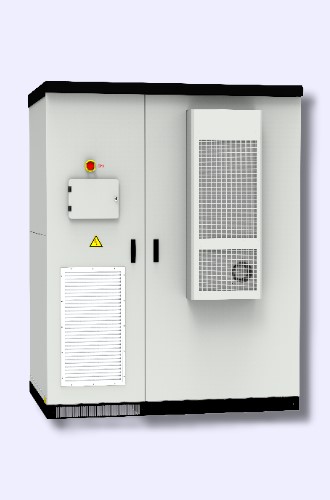

The VED 100k-215kWh-F system is not just an energy storage unit but a strategic tool for peak shaving, providing backup power, and facilitating energy transitions. It's designed to integrate seamlessly into commercial settings, enhancing both security and environmental sustainability.
Adopting the VED 100k-215kWh-F aligns your business with sustainable energy practices without sacrificing operational efficiency. This system supports a greener operational model, reducing carbon emissions while optimizing energy use and costs.
Transform your energy strategy with the VED 100k-215kWh-F commercial battery energy storage system. Discover how this solution can support your business's growth and sustainability goals by contacting us. Together, we can craft a future where energy efficiency and reliability are paramount.
Model | VED 100k-215kWh-F |
---|---|
Battery Parameters | |
Module Energy | 64V/280AH/17.92kWh |
Number of Battery Module | 12 |
Nominal System Energy | 215kWh |
Operating Voltage Range | 672~864V |
Max. Charge/Discharge Current | 0.5C/0.5C |
Battery Module Dimension&Weight | 440*912*265mm (W*H*D)/145kg |
AC Parameters | |
Nominal Power | 100kW |
Nominal AC Voltage | 400V |
Nominal Frequency | 50/60Hz |
Grid Type | 3W+N+PE/3W+PE |
Max. Efficiency | 97.3% (Peak) |
Max. Load Capacity | 110%(Continoues), 120%(1min) |
PV Parameters | |
Input Power | 100kW |
MPPT Voltage Range | 200~650V (320~650V With Full load) |
Max. Input Current | 320A |
System Parameters | |
Cooling Mode | Air Conditioner |
Noise | <70dB |
IP Rating | IP54 |
Altitude | <2000m |
Operation Temp Range. | -20°C~60°C |
Allowed Humidity Range | ≤95℃(RH) |
Accessories | Smoke Sensor, Door Sensor, Water Sensor, Fire Suppression, EPO |
Isolation Transformer | Optional |
Communication | RS485/CAN/4G/Dry contact |
Design Certification | IEC63056, IEC62477-1, IEC62109-1/2, GB/T36276, ICE62619, EN61000-6-2,4 |
Weight | Approx. 3200kg |
Dimension(W*D*H) | Approx. 1850*1200*2300mm |
